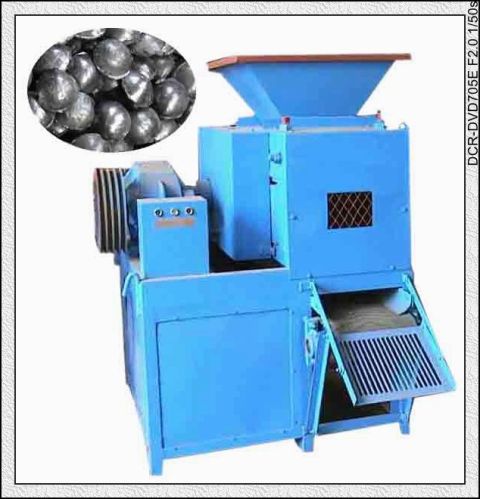

Briquette Machines

We are offering briquette machines.
Working principle
this series of ball press machine will pass the powder on to the two pressure roller through the reducer. The two sides and roll rotation, in both the rotating roll, natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, when the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
application of coal ball press machine
coal ball press machine is used for making coal fines, coke fines, charcoal powder, carbon black, iron ore fines, cast iron fines, mill scale, manganese ore fines, phospho gypsum powder and other material fines into briquettes. These briquettes can be designed of oval shape, egg shape, pillow shape, square shape etc. This machine is widely used in coal industry and metallurgy industry.
coal ball press machine main technical parameter:
type roll diameter (mm) capacity (t/h) motor power (kw) roller material
hjyq290 290 1-3 5.5 65mn
hjyq360 360 4-6 7.5 65mn
hjyq30 430 6-8 11 65mn
hjyq500 500 7-9 18.5-30 65mn
hjyq650 650 10-15 22-37 65mn
hjyq800 800 15-20 30-75 65mn
hjyq850 850 20-25 75-90 65mn
hjyq1000 1000 25-35 90-110 65mn.
