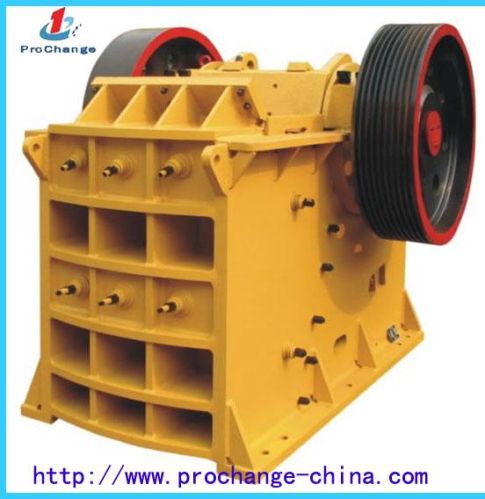

Broken Compressive Strength 320Mpa Mobile Prochange Brand Jaw Crusher

₹ 90,500 / 999999 999999 Set

MOQ1 Set(s)
Conditionnew
Number Of Flowerjaw crusher
Capacity(t/h)10-30
Dischange size(mm)15-45
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Henan Bochuang Machinery Equipment Manufacturing Co. ltd

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 2011

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of Flowerjaw crusher
Conditionnew
Dischange size(mm)15-45
Motor power(kw)5.5
Capacity(t/h)10-30
Capacity(t/h)1-4
Overall Dimension875*745*935
Feeder opening size(mm)150*250
Max feeding size(mm)130
Weight(kg)1100

Jaw Crusher
Working principle of Jaw Crusher:
The main structure of the Jaw Crusher are composed of stander, eccentric shaft, belt pulley, flywheel, movable jaw plate, wrist plate ,adjustable gap screw, offsetting spring, fixed jaw plate. The wrist plate also has the effect of guarding.
This Jaw Crusher's crushing style is the type of driving extrusion. The motor drives the belt and belt pulley to make the moveable jaw move through the eccentric shaft. When movable jaw is rising ,the included angle between the wrist plate and movable jaw become bigger to drive the movable plate to be close to the movable plate. At the same time the material is squeezed and rubbed, rolled to achieve multiple crushing;
When movable jaw is descending, the included angle between the wrist plate and movable jaw becomes smaller. Now the crushed material is discharged from the crushing cavity, with the continuous rotation of the motor, the movable jaw crushing and discharging the material periodically to realize batch production.
Features of Jaw Crusher
1.Jaw Crusher is of various types.
2. Jaw Crusher is suitable for crushing maximum, medium and minimum stones.
3. The operating principle of Jaw Crusher is easy to be operated.
4. The structure of Jaw Crusher is simple and it is easy to maintain.
