Contact SupplierWe are prime Manufacturer, Exporter & Supplier of CNC Milling and Deburring Machine based in Maharashtra, India. The company has a team of skilled and well-qualified professionals who are aware about the latest techniques for manufacturing the product as per industry standards. We also provide Special Purpose Milling and Deburring Machines in tailor-made specifications, defined by the buyers, at reasonable rates.
Machine |

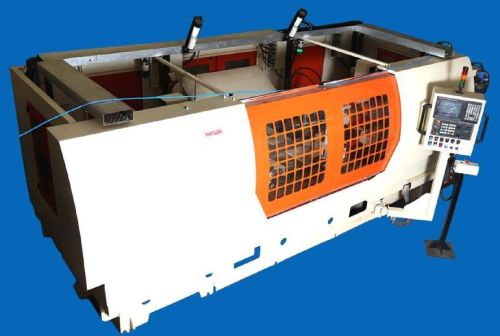

Milling & Deburring Spm – Model 976 |
---|---|
Component |
Twist Beam Welded Structure Assy. |
Operation |
Miling & Deburring of at both ends Camber plate |
Cycle time(Output/hr) |
120 Sec.(30/hr.) |
Machine Description |
Job is loaded in the fixture manually. Hydraulically clamped. An ISO50 milling spindle unit mounted on X and Z servo axis slide performs the facing operation in two pass on camber plate from both sides. |
|
Y axis slide and one more spindle unit is provided to carry out deburring operation to the profile of camber plate using Y and X axis interpolation. |
