Our team of experts is capable of entertaining the voluminous orders in shortest time possible. Keeping the quality standards high, we make certain that prior to production, the inputs (raw material) are examined by the professionals to make the final product free from defects.

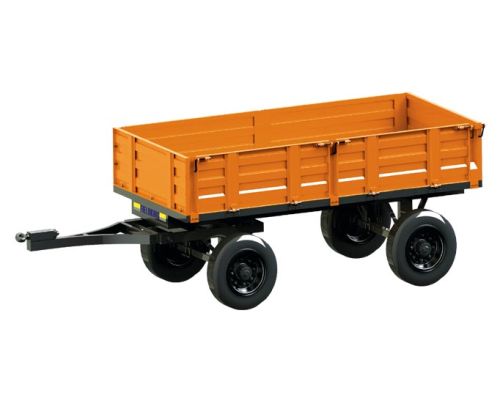

| Description | FGAT4WNT-5T | FGAT4WNT-9T | FGAT4WNT-12T |
|---|---|---|---|
| Outer Dimensions | 10x6x1.75 Feet (120"x72"x21") | 12x6x2 Feet (144"x72"x24") | 14x7x2 Feet (168"x84"x24") |
| Main Chassis (mm /inch) | 150/6" x 75/3" | ||
| Floor Sheet (mm) | 4 (T) | ||
| Side Wall Sheet (mm) | 2 (T) Corrugated | ||
| Tyres | 4 Nos. of 7.5 x 16 | 2nos. Of 7.5x16, 2nos. Of 9.00x16 | |
| Hitch Beam (mm / inch) | 75/3" x 40/1.6" | 100/4" x 50/2" | 100/4" x 50/2" |
| Ring Hitch Dia (mm / inch) | 50 /2 " | ||
| Axle (mm / inch) | 75 / 3" Sq. (Front & Rear) | 75 / 3" Sq. (Front), 90 / 3.5" Sq. (Rear) | |
| Axle Bearing | 32214 and 32213 | 32216 and 32213 | |
| Weight (Kg / Lbs Approx.) | 1550/3417 | 1720/3792 | 2000/4409 |
| Tractor Powder (HP) | 50-70 | 70-90 | 90-100 |
