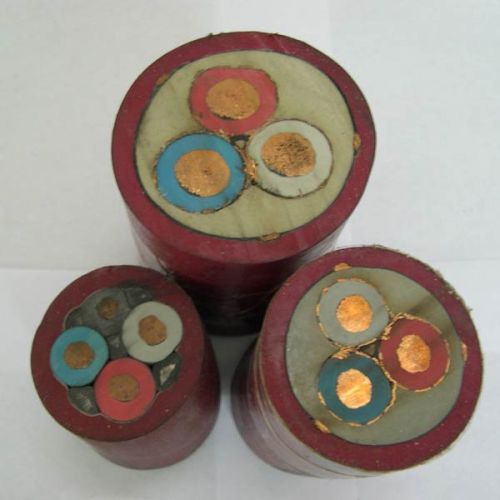

Contact SupplierWe are offering bs standard mining flexible cable.
Standard: bs 6708 flexible cables for use at mines and quarries
application: used on mining machines and to supply mining machines both on the surface or underground.
specification
conductor: class 5 copper
insulation: rubber compound as per bs 7655
screen: wire and synthetic fiber braids, all wire braids
sheath: rubber compound as per bs 7655
the products of this series include:
bs6708 type 7, 7m, 7s, 11, 14, 16: cables with individual metallic screens, rated voltage 6401100v for use with coalcutters and for similar purposes.
Bs6708 type fs4: flat cables with individual metallic screens, rated voltage 6401100v for use on overhead catenary systems and for similar purposes.
Bs6708 type 20, 21, 62, 63, 64, 70, 71, 201, 211, 321, 331: cables with galvanized steel pliable wire armoring, rated voltage up to 19003300v.
Bs6708 type 506, 512, 518, 524: cables with galvanized steel pliable wire armoring having up to 24 individual screened cores, rated voltage up to 320550v.
Bs6708 type 621, 630, 631: cables with galvanized steel pliable wire armoring having individual metallic screened or unscreened cores, rated voltage up to 38006600v.
Bs6708 type 44: cables with individual metallic screens, rated voltage 6001000v, for use with drills.
Bs6708 type 43: cables with individual non-metallic screens, rated voltage 6001000v, for use with drills.
Bs6708 type 730: cables with individual metallic screened cores, non-armored, rated voltage 38006600v.
Bs6708 type 830: cables with metallic screened cores, non-armored, rated voltage 635011000v.
Bs6708 type 307, 307m, 307s: cables with individual metallic screens, rated voltage 19003300v, for use with coalface cutters and for similar purposes.
