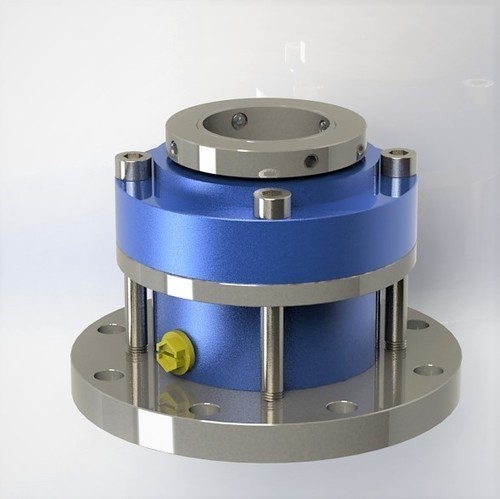

BSI-107GL Mixer and Agitator Seals

Features

• Single end
• Unbalanced & balanced
• Easy installation.
• Wet seal without bearing arrangement.

Advantage

Seal are factory assembled & dynamically tasted cartridge units for steel, glass lined, ss mixers, agitators & vessels. These are used with non-pressurized barrier fluid preferably clean soft water because of its good heat transfer qualities. Fluids like oil, hydrocarbon, solvents etc. can also be used as buffer fluid by considering the corrosion resistance of wetted parts & compatibility with main media to be sealed. These seals are supplied with cooling water jacket, which ensure cool running of seals.

Operating Range

• Pressure: – 0.1 ~ 0.6 MPa (when the pressure is bigger than 0.6 MPa, the pressure balancing device is needed and its connection size can be customized)
• Temperature: – 20 ~ 150 ºC (cooling tank is required if the temperature is higher than 150 ºC and the installation height should be 100 mm higher than normal)

Materials

• Rotary Ring Face: SiC/Carbon
• Stationary Ring Face: CERAMIC/SiC
• Elastomers: /PTFE/FFKM
• Springs: /SS316/HC-276
• Metal Parts: SS304/SS316/SS316

Recommended applications

• Corrosive Chemicals
• General Chemicals
• Light Hydro Carbons
• Mixers & Agitators.
