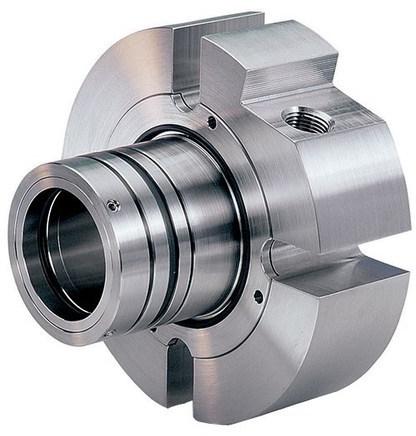

    Metal BSI-55 Cartridge Seals

    • MaterialMetal
    • Temp.- 50ËšC TO +180ËšC (-50 °F … 356) °F
    • PressureUp to 15 Bars
    • Shaft SpeedUp to 25 M/s
    • Shaft Diameter25 to 150mm
    • Supply TypeExporter
    • Preferred Buyer Location All over the world
    Send Enquiry

    Company Information

    • calendar Member Since 4 Years
    • building Nature of Business Manufacturer
    • Year of Establishment 2010

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • MaterialMetal
    • Shaft Diameter25 to 150mm
    • Temp.- 50ËšC TO +180ËšC (-50 °F … 356) °F
    • PressureUp to 15 Bars
    • Shaft SpeedUp to 25 M/s

    Features

    • Single Cartridge Seal
    • Balance SEALS
    • Easy Installation.



    Advantages

    • Seal arrangements incorporate an elastomer O-ring as the secondary sealing member. A common seal head/mating ring set, utilized throughout all versions, is reversible to allow rotating. Seat/mating ring or rotating seal head operation, and is interchangeable with metal bellows seal heads. Seal has an optional quench gland with carbon ring throttle bushing.
    • Balance Pusher Seals available in Single Configuration used for Sealing Environmentally. Dual Directional. Stationary spring design. Reversible Seal Head. No clogging Wave Spring outside the Product. Components in Cartridge Design are Builds for the Highest Reliability and Simple Installation.



    Materials

    • Seal Ring Faces: TC and SiC
    • Seat Faces:Sic and TC
    • Elastomer: Viton, PTFE, FEP and FFKM
    • End fitting MOC: SS 316, HAST-C and Carpenter 42
    • MOC: SS 316 – CHANGE OF MOC ON REQUEST



    Recommended applications

    • Process industry
    • Petrochemical industry
    • Chemical industry
    • Pharmaceutical industry
    • Power plant technology
    • Slurry Pumps
    • Paints.
