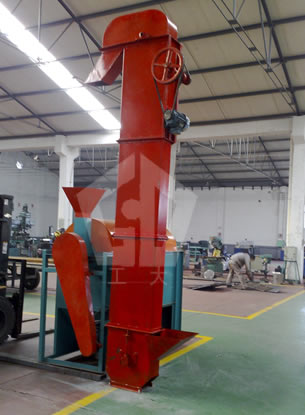

Bucket Elevator, Brand Name : GD

We are offering bucket elevator. The backet elevator consists of fixed type and combined type . It is used for the vertical lifting of grain or powder in malting industry , grain processing factory , feedstuff factory.this new type of bucket elevator is developed in accordance with malting production technology , it has features that it covers small area , it is easy to dismantle and install ,quick to combine , flexible in techinical layout , low in energy consumption , good sealed , and what’s more , the lifting height can be determined by the user .
Main technical parameter
item model
dtj-3
dtj-5
dtj-10
dtj-20
production capacity（th）
3
5
10
20
available capability of hopper(l)
1
1.3
2
3
space between hoppers(mm)
600
500
500
450
equipment total power（kw）
4
5
5.5
7.5
speed of hoppers （ms）
1.4
1.5
1.5
1.6
