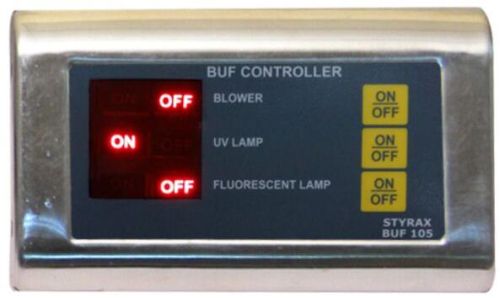

BUF Controller

buf on/off controller is used for on/off controlling of blower, uv lamp & cf lamp in dynamic pass boxes, bio safety cabinets and laminar air flow. The status of blower, uv lamp & cf lamp is provided on display.

• advanced micro controller based.
• on/off message display.
• relay o/p for blower (up to 1 hp), uv lamp & cf lamp.
• on/off massage status indication with high intensity bar leds.
• status indication: on, off-blower, on, off- uv lamp & on, off – cf lamp.
• blower failure status indications.
• soft touch membrane key pad.
• easy for installation.

• relay specifications	contact material: silver alloy. contact rating: 230v ac / 2 a. no. Of operations mechanical: 107 electrical: 105.
  enclosure	ms powder coated for controller unit ss-316 face plate for dpm.
  mounting	panel.
  power	100 - 260v, ac 50 hz.
  dpm dimensions	150mm l x 91mm w x 29mm d.
