Building Construction Floor Deck Forming Machine

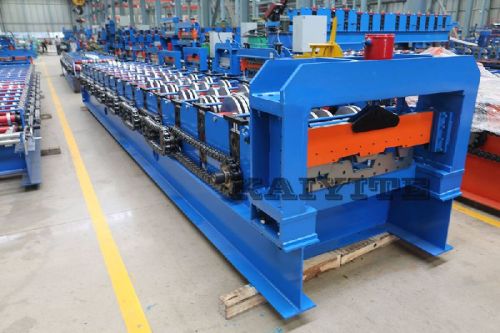

Building Construction Floor Deck Forming Machine This floor deck panel produced by Building Construction Floor Deck Forming Machine has high wave , high strength. It is set up with concrete, which has good adhesiveness. It not only saves plenty of temporary mold , but also saves the amount of the concrete . Also the panel sheet reduce the permanent load of the structure . Therefore , steel quantity of the whole project is decreased and can save money surely. Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand Minimal maintenance High efficiency Reliable working  Low energy consumption Durable Technical You can check our machine over all. Not only beautiful in the surface but also good quality. Technical parameters: Material Specification  :  colored steel sheet , galvanized steel sheet. Thickness of coil sheet :0.8-1.2mm Forming speed : 25 meter min Hydraulic pressure :58MPA Hydraulic station power : 4kw Main motor power : 4kw Voltage : 380V 3phases 50Hz or at buyers requirement Controlling system : PLC In order to help you know our machine much better. The following is the detailed pictures of the machine. Hydraulic cutting system   Forming rollers   Specification: 45# steel, CNC Lathes, heat treated  Feature: hard chrome plating, 0.05 mm The following picture shows the whole production process of the roll forming machine.
