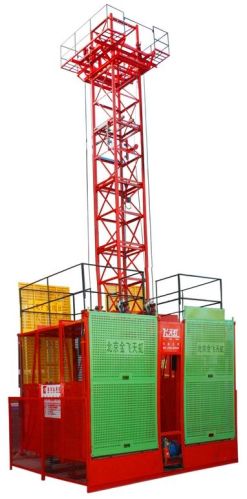

Building Hoist

We are offering building hoist.
place of origin beijing, china (mainland)
brand name fth
model number ss100/100
rated loading capacity(kg) 1000/1000kg
hoisting speed 23.5m/min
max lifting height 80m
cage dimension(l*w*h) 2.8*1.5*1.9
motor power(kw) single-cage 11 /double-cage 22
steel rope length 75m
ss100, ss100/100 material hoist
a. Introduction of ss100/100 material hoist
ss100/100 material hoist is a vertical handling machine which is widely applied in building construction, industrial and mining, multi-storey workshop, warehouse, station, wharf, etc. It is convenient, efficient, and secure.
ss100/100 is set up with safety multiple protection devices like floor-selecting and leveling device, elevating limiter, rope protection device, parking safety device, bumper, upper and lower height restrictor, anti rope-breaking equipment, among which, the brake performance and brake slide distance of the rope protector are above national standards. It is safe, reliable, and harmless to rail-track.
ss100/100 secure and visible control center is a new designed product according to the construction industrial special requirement, which adopts the latest computer chip technology. Compared with the previous generation products, its safety and stability installation have been greatly improved.
ss100/100 has 2 types: single-caged and double-caged, optional for users.
b. Four hot selling points of ss100/100 material hoist
first, high security
1. Overload protection 2. Losting-phase protection
3. Door safety protection 4. Interlayer door protection
5. Motor reversal protection 6. Mechanical crash roof protection
7. Sensor fault protection 8.motor cutting-out or overload protection.
9. Alarm bell output protection 10.data protection
second, advanced control performance
1. Four rope machinery prepare for leveling
2. Straight type function setting
3. Direct-reading height electronic ruler
4. Automatic identification floor
5. Built-in interphone
6. Intellectualized correction deflection function
7. Automatic resetting target floor function
8. Simplicity of operation
9. Computer tips function
10. Password protection function
third, reliable, durable and easy to maintenance
1. Fast maintenance
2. High reliable manual function
3. Dust proof
4. Anti-jamming
fourth, perfectly control
