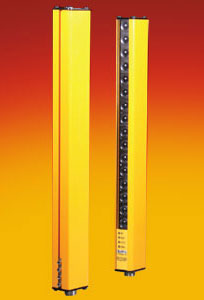

Built Controller Safety Light Curtain

We are one of the well-known Manufacturers, Exporters and Suppliers of Built Controller Safety Light Curtain in Mumbai (India). We provide high quality Built Controller Safety Light Curtain to our clientele on timely basis. Our range of Built Controller Safety Light Curtains is known for its numerous qualities and applications.
Features of Built Controller Safety Light Curtain

• Self Test : Built in self test to ensure that the electronic components and logic circuits are functioning properly. System will go to wait state if the self test detects a malfunction and the two outputs will switch off
• Dual Electronic Circuits : With two separate outputs and feedback from each output to add the reliability and to ensure failsafe operations
• Housing : Extruded aluminium C Sections ensures that the product can withstand severe mechanical impacts
• Mounting : T Slots allow for easy mounting arrangements
• Optics : Well designed optics ensures easy alignment
• Optical Communication : No Interconnecting cables. Immune to noise

Specifications

• Operating Range : 5000 mm upto 15000 mm
• Effective Angle : ± 5^o
• Supply Voltage : 24 VDC ± 20%
• Output : 2 x PNP N/O
• Response Time : 15 m sec
• Temperature : 0 to 60^oC
• Humidity : 30 to 85% RH
• Emitting Element : Infra Red LED
• Peak Emission Wavelength : 940 mm
• Output Load current : Max. 100 mA
• Vibration Resistance : 10 to 55 Hz, 0.75mm Amplitude in X Y & Z Direction For 2 Hours each 30msec2 Acceleration(30 G approx.) in X, Y & Z direction for three time each
• Connection : Transmitter 2 Pin connector & Receiver 4 pin connector
• Dimension : 31 mm (Width) x 41 mm (Breadth) x Total Height
