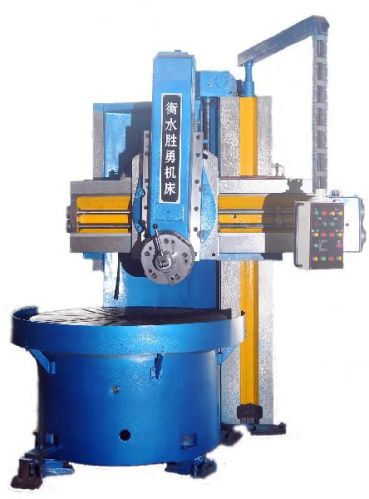

Bullard Vertical Turret Lathes VTL Machine

Bullard Vertical Turret Lathes VTL machine is suitable for hard alloy and ceramic tool, high speed steel tools and ferrous,non-ferrous metals .CNC Vertical turret lathe machine can be carried out turning inner&outer cylinder surface,cone surface, grooving, drilling,tapping and reaming etc process machining.
Technical specification of Vertical turret lathe machines C5118
1 Table diameter 1400 mm
2 Maximum turning diameter 1800 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 rmin
6 Working table Step of rotation speed 16
7 Feed rates 0.8-86 mmmin
8 Step 12 step
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 900 mm
11 Crossrail travel 650 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 rmin
14 Power of Feed motor 1.31.7 kw
Revolutions 9401440 rmin
15 Machine weight 17.5 t
16 Overall dimensions(L×W×H) 2900×2900×3800 mm
