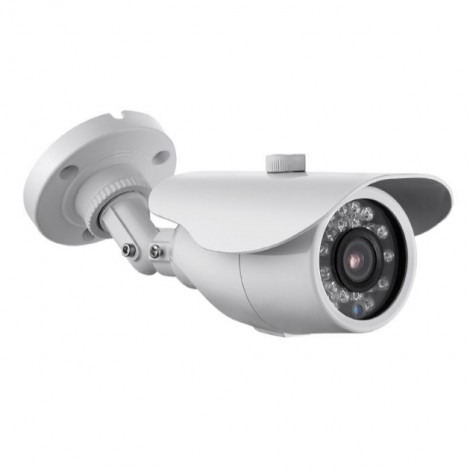

Bullet Camera, Model Number : CAM-MI132Q-P

Company Information

Ask for more detail from the seller

Report incorrect details

Lens3.6mm Lens
Motion DetectionSupport ?software?
Weight5.1 kg
Model NumberCAM-MI132Q-P
IR Leds24pcs ?5mm IR Leds
Power SupplyDC12V
Video CompressionH.264, AVI
Working Temperature -20 ºC~+50 ºC
Video StandardONVIF 2.4
FTPSupport Timing Video Upload, Timing Snapshot(software)
Minimum Illumination0 Lux When IR ON
Communication Port1 RJ4510M/100M Adaptive Ethernet Port
Size28, 30, 34, 36, 37
Privacy Mask4 Zones ?software?
Frame Rate25/30fps
E-mail AlarmE-mail Notification, Alarm Sanpshot, Timing Snapshot (software)
Day/nightICR Filter
Compression Output Rate32K~8Mpbs adjustable
Gain ControlAuto (software)
Dimensions5 x 7 x 6 cm
Supporting ProtocolsHTTP, TCP, RTSP , RTP, ICMP, UDP, IGMP V3 , RTCP, FTP, DNS, Bonjour, ARP, NTP
White BalanceAuto (software)
Image Sensor1/3” Aptina CMOS + HI3518C
IR Distance25-30M
Power Consumption<6W
POEOptional POE (IEEE 802.3.af)
Effective Pixels1.3 Mega-pixel, 960P (1280×960) 1.3MP
Image AdjustmentSaturation/Brightness/Contrast/Sharpness/Color adjustable (software)
Concurrent Dual-streamH.264/ AVI: 720P, SVGA

Adopt HI processing chipset & HD CMOS image sensor
H.264, AVI coding format
Max. Support 960P(1280X960), 25f/s full real-time coding
Built-in web to achieve configuration of video and network parameters
Support dual-stream, mobile browsing
POE optional (IEEE 802.3.af)
Support ONVIF2.4 standard network video transmitting protocol
Matched with independent software, compatible with all types of large-scale platform
