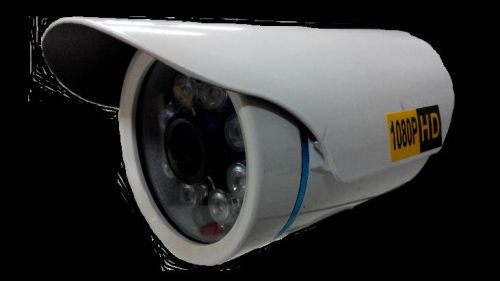

Bullet Waterproof IR Camera (SSV-TVI-778S22)

Model : SSV-TVI-778S22
Image Sensor : 12.8” Sony CMOS sensor, 2MP (IMX 322)
Resolution : 1920(H) x 1080(V) @ 30FPS
LENS : 3.6mm Megapixel Lens
Effective Pixels : Approx. 2.0M pixels
Video Standard : PAL NTSC
DayNight Mode : Auto／Color／B&W
Back Light Compensation(BLC) : AUTO
Auto White Balance(AWB) : AUTO
Synchronization : Internal
Scanning System : 2:1 Interlace
SN Ratio : ≥ 80dB (AGC OFF)
Auto Electric Shutter(AES) : Auto 150 (160) ~1100,000 Sec.
Min. Illumination : 0.01 Lux (F2.0, AGC ON)
Video Output : HD-TVI Video
IR Cut : Yes
Video Storage : 1H ≈ 1.506GB
Video Output : 1.0 Vp-p 75 ohm composite
IR Coverage Distance : 20~25 Meter
Transmission Distance : 300 500 Meter over Coaxial Cable
300 Meter over Twisted pair Cable
OSD Menu : Multi-Languages OSD Setup Menu
IR-LED : 8 x IR-LEDs
IR-LED Wavelength : 850 nm
Operation Environment : -20°C〜+50°C 85％RH
Power : DC 12V ±10%
Construction : Aluminum
Dimension : 82mm(D) x 142mm(H)
Net Weight : 530g
Note : Specifications are subjected to change without notice
