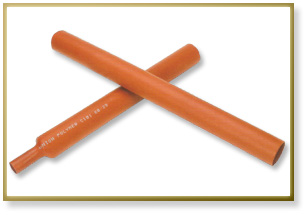

    Bus Bar Insulation Heat Shrinkable Tubing

    Bus Bar Insulation Heat Shrinkable Tubing

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

      Voltage Class 1 kV~36kV Ideal for high and low voltage bus bar insulation Medium and heavy wall heat shrinkable tubing for protection and insulation of bus bar against accidents caused....
    View More Details
    Send Enquiry

    Company Information

    Classic Enterprises
    location Bhandup West, Mumbai, Maharashtra
    View Number
    • calendar Member Since 20 Years
    • building Nature of Business Retailer
    • Year of Establishment 2003

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon



    Voltage Class 1 kV~36kV Ideal for high and low voltage bus bar insulation
    Medium and heavy wall heat shrinkable tubing for protection and insulation of bus bar against accidents caused by electrified bare bus bar.

    Applications :
      Bus bar insulation and protection
      In switchgear cabinets where space is limited and air spacing between       bus bars need to be kept at minimal







    Features / Benefits
       Reduce bus bar clearance requirements
       Give designers more freedom in designing switchgear cabinets when space premium
       Protects against accidental flashover up to 36kV
       Protects against short circuit and electrical leakage caused small animals
       Protects against corrosion, dirt and other contaminants that may cause accidental flashover
       Halogen Free (optional)
       Flame resistant with oxygen index higher than 27 (optional)
       Available in continuous length roll form for convenient and economical installation




    Test ItemTest standerd Typical performance
    Tensile strengthASTM D2671≥10 Mpa
    Break down elongationASTM D2671≥400 %
    Tensile strength after agingASTM D2671≥10 Mpa
    Break down elongation after aging(136°C for 168h)ASTM D2671≥400 %
    Flame retardantASTM D2863Oxygen Index≥27
    Dielectric strengthASTM D2671≥15 kV/mm
    Heat shock (200°C for 4h)ASTM D2671no drop, no flow
    Low temperature flexibility(-40°C for 4h)ASTM D2671no cracking
    Water absorptionASTM D570A≤0.5%
    Copper corrosion(158°C for 168h)ASTM 2671pass
    Long term ageing/ elongation at breakIEC 60684-2>175%
    Resistance to selected fluids:
     Tensile strength
     Elongation at break
    		IEC 60684-28mpa >250%






    Product Selection


    a + b
    min ~ max.    		d
    min ~ max.    		S1-10min. thickness for 10kV-24kV shrink on the bus barS1-35min. thickness for 24kV-36kV shrink on the bus bar
    15251018Ø 25 / 101.6Ø 25 / 102.5
    22351525Ø30 / 121.6Ø 30 / 22.5
    28452030Ø40 / 161.6Ø 40 / 162.5
    38552540Ø50 / 201.6Ø 50 / 202.5
    45653550Ø65 / 25 (075 / 30)1.6Ø 65 / 25 (075 / 30)2.5
    55904060Ø85 / 35 (80 / 32)1.6Ø 85 / 35 ( 80 / 32)2.5
    701105080Ø100 / 401.6Ø 100 / 402.5
    901406095Ø120 / 501.6Ø 120 / 502.5
    10518070120Ø150 / 601.6Ø 150 / 602.5
    13021085140Ø175 / 751.6Ø 175 / 752.5
    14026095170Ø210 / 851.6Ø 210 / 852.5
