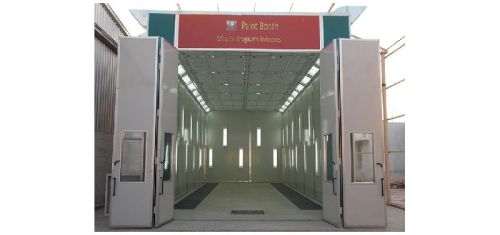

    Bus Paint Booth

    Bus Paint Booth

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    Bus paint booths are designed for cars and other heavy vehicles. The height, width & depth can be customized as per requirement. Booths are pre-centres for easy and fast assembly. The modular booths....
    View More Details
    Send Enquiry

    Company Information

    Sri Bhagavathi Industriesverified-icon
    location Ganapathi, Coimbatore, Tamil Nadu
    View Number
    • calendar Member Since 12 Years
    • building Nature of Business Retailer
    • Year of Establishment 1996

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    Bus paint booths are designed for cars and other heavy vehicles. The height, width & depth can be customized as per requirement. Booths are pre-centres for easy and fast assembly. The modular booths are easy to assemble.



    Body Construction:
    • Cabin system: Wallboard: esp. 75mm, thickness of outer coated sheet: 0.5mm.
    • Roof panel: Eps 50mm thickness of outer coated sheet: 0.476mm.
    • Max temperature: 80
    • Burner brand: rg 5s
    • Max heat energy: 260,000 kcal/h
    • Oil consumption :13-26 kg/h/set
    • Heat exchanger material: Stainless steel
    • Quantity of burner: 2 sets
    • Inlet air capacity/unit: 17530m3/h
    • Quantity of inlet fan: 4 sets 5. 5kw
    • Exhaust air capacity: 34000 m3/h/set
    • Quantity of exhaust fan: 2sets 11kw
    • Roof lights: 72pcs*36w
    • Side lights: 40pcs*36w
    • Lamp brand: Philips
    • Illuminance: ≥800lux
    • Material of exhaust air duct: Galvanized sheet (12m direct duct and 2 elbows)
    • Duct diameter: 900x900 mm
    • Electrical control box: Main components are imported parts
    • Roof and floor filter: Imported model
    Specification:
    • Outside dimension: Length 15156, width 6956 & height 5800
    • Inside dimension: Length 15000, width 5000 & height 5000
    • Main door: Width 4000, height 4500
    • Quantity of the main door: 1 set
    • Service door: width 650, height 1800
    • Quantity of the service door: 2 sets
    • Basement: No basement(2 rows of grids with pit)
    • Velocity air speed: ≥03m/s
    • Noise(db): ≤85
    • Total power: 72 kw
