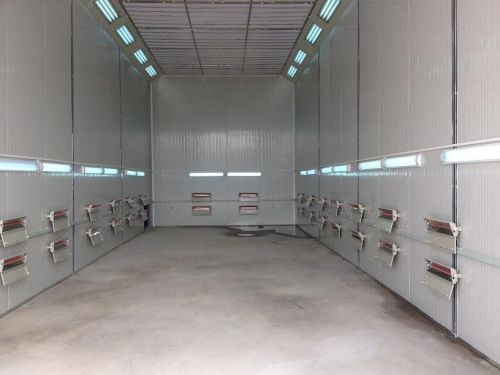

Bus Spray Booth

We are offering bus spray booth.
1 outer size 15000×6000×5500mm（l/w/h） inner size 14850×4850×5000mm（l/w/h）
2 entrance door 4 doors with 1.2mm aluminum alloy wrap-around fold door size:1000*4800(w/h)
3 working door 1 door, size:700*1700mm
4 wall 75mm eps(epispastics polystyrene) with 0.426mm colored steel
5 lighting up side 45° degree equipped with 14 groups(28 lamps) philips tubes. Waist equipped with 18 groups(54 lamps) philips tubes
6 cabinet device intake air from upside, exhaust wind from downside. It can set according to the present situation . Square tube is 50*50mm galvanized plat(0.8mm)
7 air supply and air exhaust 4 air supply fans, each fan parameter：yow5.6m.5.5kw.25000m3/n
2 exhaust axial fans，each fan parameter：tae-710h.3kw.20000 m3/n
8 heating system 36 groups far infrared carbon fiber tube(1000w each). Temperature settle(50 centigrade to 60 centigrade)
9 filter system pre-filter, high efficiency filter
10 roof 75mm eps with 0.426mm colored steel
11 control system spraying, baking , temperature regulator, lighting switch, failure indicator, time accumulator, power supply switch,emergency stop, rcd
12 power supply 380v 50hz
13 no load speed more than 0.25m/s
14 light intensity more than 1000lx
15 total power 66kw
16 air outlet pipe the wind pipe is made of galvanized plate(0.8mm) with stiffener. 3 straight pipe(700*700*1000mm), 1 bend pipe
17 environmental system three layers activated carbon , air efficiency is more than 98%.
