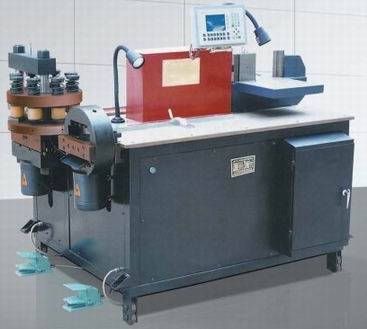

Busbar Shearing, Bending and Punching Machine

Busbar shearing, bending and punching machine (mx-303-1).
multi-functional busbar machine is a self developed patent product of our company. Compared with conventional busbar processing, the products main characters are as follows;
-the punching unit and the shear unit adopts circular overall structure,its design is new and unique guarantee long time usage without deformation;
-the bend unit adopts manuall control method the poeration is simpel;
-the machine adopts dual layer platforms design scheme;
-the machine is equipped with auto refueling draining system,the operation is simpel and convenient, the hydraulic oil enters oil tank througn the filter, which can protect the whole hydraulic system from any contamination;
-the machine adopts stainless steel oil tank, which can guarantee no corrosive degeneration of the hydraulic oil and extend the usage life span of hydraulic oil and each sealing parts;
-change of die is convenient;
-plc control, stable and reliable.
configuration
dimension of platform(mm)
weight of he machine
(kg) number of motor total power of motors
(kw) work voltage
(v) nmumber of hydraulic station and specification
(mpa)
layer1: 1200×1000
layer2: 840×370
1060
2
4.37
380
1×31.5
main technical data
items
materials processing
thichness× width
maximum punch maximum output power
punch unit copperaluminum thickness: 15mm
25 350kn
shear unit copperaluminum 15×160mm 350kn
bend unit copperaluminum 15×160mm 350kn
punch unit
fast change of die is realized without any requirement on tool, and the machine can finish round hole punch, oblong hole punch, square hole punc, double hole punc, embossing, copper bar press and copper bar shear etc.
