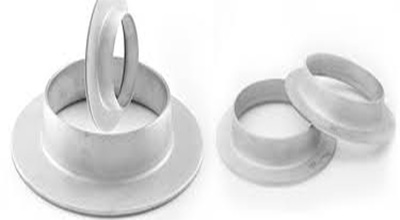

Metal Collar

Number Of FlowerButt weld (BW)
ASME B16.9Factory-Made Wrought Fittings Buttwelding
ASME B16.25Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns
ASTM A403ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Number Of FlowerButt weld (BW)
MSS SP-43Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
ASME B16.25Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns
ScheduleSch 5 TO Sch XXS.
ASTM A403ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9Factory-Made Wrought Fittings Buttwelding
Size1/2” TO 36”, (Seamless up to 24”), (Welded 8” TO 36”)
DimensionANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Collar Production Range

Outside Diameter : 1/2″ – 48″

Wall Thickness: 2-40 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering

Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards :

Collar Material Grades :

Stainless Steel Collar : ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Collar: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Collar: ASTM A420 WPL3, A420 WPL6
Alloy Steel Collar: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Collar: ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Collar: ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (Inconel 625), UNS 10276 ( HASTELLOY C 276 )

Standards :

ASME / ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'

Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Materials and Grade: Stainless Steel Collar :
