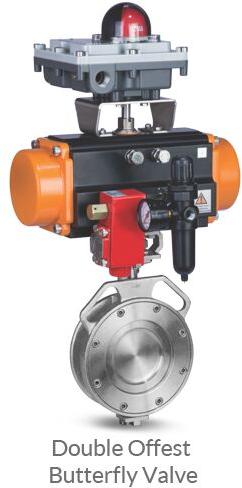

Butterfly Valve

Listing ID #4126945

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Designed and manufactured as per BS 5155, API 609, MSS SP 67 & ISO 5752 FEATURES Bi Directional zero leakage Butterfly Valve An Extremely negligible backlash between Stem & disc due to square....

View More Details

Send Enquiry

Product Details

Designed and manufactured as per BS
5155, API 609, MSS SP 67 & ISO 5752

FEATURES

Bi Directional zero leakage Butterfly Valve
An Extremely negligible backlash between Stem & disc due to square drive.
Butterfly Valves (Lined) are designed to fit without gaskets between flanges drilled to ANSI 125 #, ANSI 150#,DIN., ND 10, 16, BS 10 Table D, E and F.
100% Factory tested under Water /Air / Vacuum before the valve is Packed and shipped.
360° Disc Rotation.

SPECIFICATION

Valve Size: 1 ½” (40 mm) to 36″ (900 mm)
Rating: ANSI / BS 125# / 150#.
Design: Centric Disc, Single to Triple Offset Disc Fully Lined & Unlined Body.
End Connection: Wafer, Lugged & Double Flanged.
Operation: Pneumatic.
Port Opening: Full.
Seat: Nitrile EPDM / Neoprene / Silicon /Viton etc.
Disc: Solid Dual Shaft / Single Shaft.
Design Code: API – 609 / BS – 5155.
Testing: API 598

Company Details

Pneucon Automation is an associate Company of Pneucon Values Pvt Ltd,who are pioneer in “Design”, “Development”, “Manufacturing” of Complete range of control Values. Pneucon Automation is promoted to manufacture complete range of AUTOMOTED ON-OFF VALVES to meet the diverse automation demands of the modern process industries.
CUSTOMER SERVICE Pneucon has fully integrated customer service division,which is fully geared to react speedily to all customers enquiries and whatever technical support needed.
MANUFACTURING Pneucon manufacturing unit is equipped with latest machineries,equipments and test facilites.Our production team of skilled workers ensure to employ latest state-of-the-art modern techniques in the entire cycle of production under stringent quality control procedures.The valves and components are manufactured to the highest degree of accuracy to ensure a trouble free long life and guaranteed interchangeability of spares
DESIGN AND ENGINEERING
Pneucon Engineering department’s mission is design innovation.our ability,experience and expertise through t
MANUFACTURING
Pneucon manufacturing unit is equipped with latest machineries, equipments and test facilities. Our production team consist of skilled workers who ensure to employ latest state-of-the-art modern techniques in the entire cycle of production under stringent quality control.
QUALITY
Pneucons Quality Management System Comply with ISO 9001:2008 and is certified by TUV NORD,the Valves are produced in strict compliance with the Quality Management System Requirements and in conformance with the engineering codes in practice and relevant standards.
TIME MANAGEMENT
At Pneucon Automation, we emphasize on the effective time management policy while dealing with our customers. This policy enables us to adhere to utmost product quality, fulfilling customer requirements and providing timely delivery of valves.
