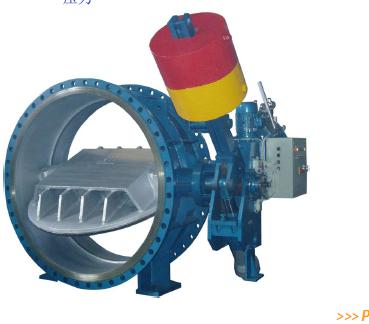

Butterfly Valve For Hydroelectric Power Plant

We are offering butterfly valve for hydroelectric power plant.
Introduction for valve of hydropower station:
valve is the control device of fluid pipe and its basic function is to connect or cut off the medium circulation inside pipeline, change the circulation and flow direction of medium, adjust pressure and flow of medium, protect the normal operation of pipeline equipments. Valve is an important control component of the pipeline.
The common inlet valve for hydro turbine: gate valve, butterfly valve and spherical valve.
The main valve equipments in hydropower station are the inlet butterfly valve or inlet spherical valve for turbine and
the supporting expansion joint etc; of course other ordinary valves (like buttery valve, gate valve and check valve) are also used a lot.
Type and features for valve of hydropower station:
butterfly valve series
nominal diameter: dn100~dn4600
nominal pressure: pn0.25~4.0mp
design and mfg. Standard: gbt 122387-89
structure size standard: gb12221-89
flange standard: gb9113-2000, gb17241.6-1998
test standard: gbt 13927-92
structure type: lever type, vertical plate, inclined plate
operated type: manual, worm gear, electric, pneumatic, hydraulic, electro-hydraulic linkage
