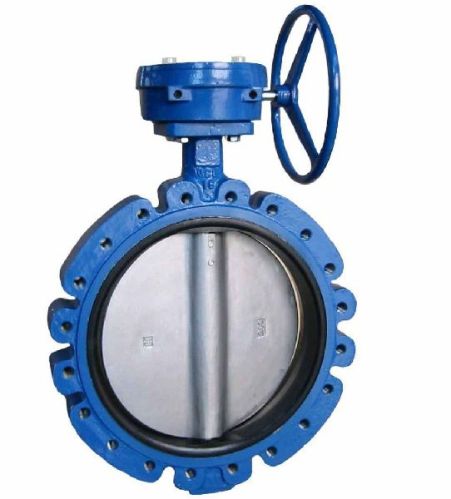

Butterfly Valves, Type : Industrial Valves

End ConnectionASME B16.5, ASME B16.25, ANSI B16.42, ANSI B16.24,ASME B16.1, EN 1092, ISO 7005
DESIGNAPI 609 CAT-A, MSS-SP-67, EN 593 (BS 5155) ISO 5752, BS 6364
TESTINGAPI 598 / EN 12266 / BS 6755 PART-1
PT RATINGASME B16.34
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

End ConnectionASME B16.5, ASME B16.25, ANSI B16.42, ANSI B16.24,ASME B16.1, EN 1092, ISO 7005
DESIGNAPI 609 CAT-A, MSS-SP-67, EN 593 (BS 5155) ISO 5752, BS 6364
NACE COMPLIANCENACE MR 0175 / ISO 15156
TESTINGAPI 598 / EN 12266 / BS 6755 PART-1
FACE TO FACEAPI 609 CAT-A, ISO 5752 SER-13, MSS-SP-67
PT RATINGASME B16.34

SPECIFICATIONS
VALVE SIZES	2" TO 36"
CLASS RATINGS	CLASS 150 TO 300, PN CLASSES ALSO AVAILABLE
END CONNECTIONS	WAFER, WAFER LUG FLANGED
OPERATION	ELECTRICAL ACTUATORS, PNEUMATIC ACTUATORS
ACTUATORS ACCESSORIES	POSITIONER, LIMIT SWITCH, AIR FILTER REGULATOR, MANUAL OVERRIDE, SOLENOID VALVE
SPECIAL REQUIREMENTS	EXTENDED SPINDLE, LOCKING ARRANGEMENT, POSITION INDICATOR
