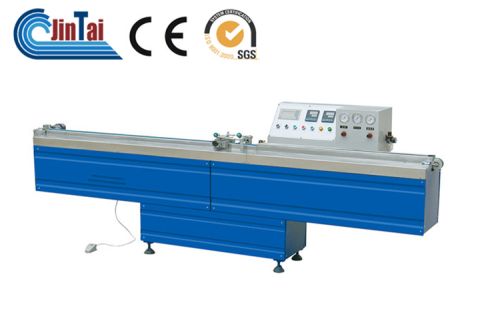

Butyl Extruder Machine Insulating Glass Machine

Main features
1. It is used for butyl sealant coating on two sides of aluminum spacer frame.
It’s a necessary machine for making insulating glass machine.
2. It is equipped with photoelectric and plc controlling systems, and high-temperature resistance conveyer belt.
3. The width between two nozzles can be adjusted as per spacer width.
4. The heating time and speed can be adjusted
5. It’s equipped with alarming system. The worker can fill the butyl in time while it is using up.
Technical parameters
working voltage 380v 50hz
total power 1.25kw
air pressure 0.6 ~ 0.8mpa
coating speed 0-28mmin
spacer width 6 ~ 20mm
heating temperature 120 ~ 140°c
squeeze pressure 12 ~ 18mpa
machine dimension 3300x800x1400mm
weight 700kgs
