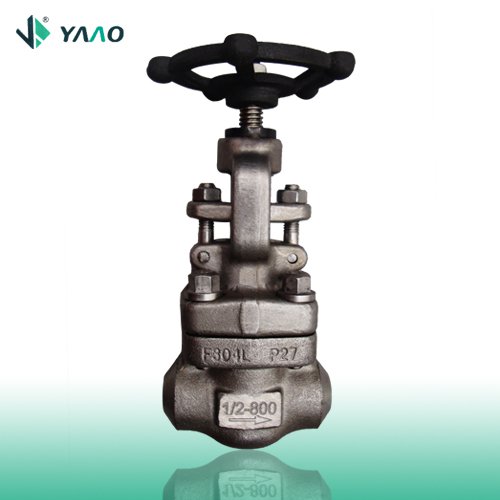

BW A182 F304L Forged Globe Valves, Brand Name : Yaao

Bw a182 f304l forged globe valve
design specifications:
size: from nps 38 to nps 4 inch.
Class: from asme 150 to asme 2500lb.
Design: api 602 - iso 15761 - asme b16.34.
Wall thickness: api 602, asme b16.34.
Pressure-temperature rating: asme b16.34.
Face-to-face dimensions for flanged valves: asme b16.10.
Flange design: asme b16.5.
Socket weld ends to asme b16.11.
Screwed ends (npt) to asme b1.20.1.
Butt welding ends: asme b16.25.
pressure testing: api 598.
Body material:
a105, a182 f304, a182 f304l, a182 f316, a182 f316l, a352 lf2, a352 f11, a352 f22, a352 f5, a352 f51, a352 f321.
Quality assurance (qa):
every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (asme section iii manual and iso 9001 manual).
