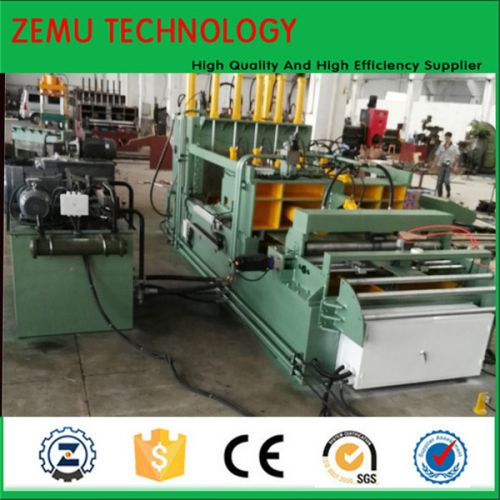

BW1300 Transformer Corrugated Fin Folding Machine, Brand Name : ZEMU

1. Description of bw1300 transformer corrugated fin folding machine
1) includes materials guidance, feeding, front pack, rear pack, edge
folding, shearing and parts collection.
2) the hydraulic system is automatic controlled and stable running.
3) human interface computer dialogue display, reasonable structure and
easy in operation, labor saving (1~2 labors).
4) perform the process of forming, shearing and edge folding within one
time when you input all operation parameters on computer unit.
2. Parts of bw1300 transformer corrugated fin folding machine
1) hydraulic automatic decoiler machine
2) corrugated walls forming machine
3) hydraulic corrugated walls shearing and bending machine
4) transformer corrugated walls automatic welding machine
5) hydraulic station
6) plc control system
3. Features of bw1300 transformer corrugated fin folding machine
1) specially designed for forming and welding transformer fin.
2) plc control, fully automatic line: automated conveying, clamping and welding.
3) touch screen control it is easy and convenient to operate.
4) high-speed welding, much faster than manual welding.
5) argon arc welding, the welding is close and the surface is very clean
and smooth.
4. Parameters of bw1300 transformer corrugated fin folding machine
1) plate width: 300mm-1300mm
2) plate thickness: 0.5mm-1.75mm
3) corrugation height: 40mm-400mm
4) bending height: 20mm
5) forming speed: 3-4finsmin
6) total power of motors: 40kw
7) corrugation pitch: >=45mm
