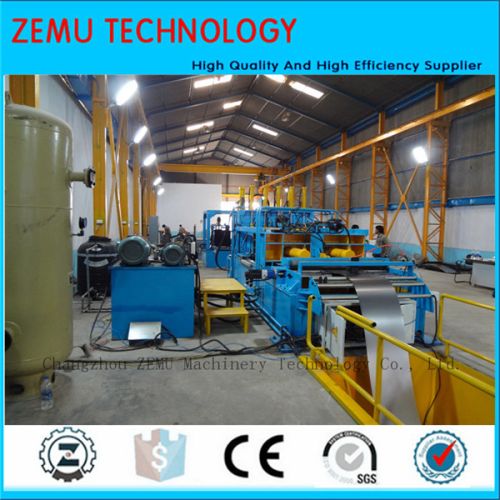

BW1600 Corrugated Transformer FIn Manufacturing Machine

Bw1600 corrugated transformer fin manufacturing machine
1. Description of factory for transformer fin wall panels manufacturing machines
1) includes materials guidance, feeding, front pack, rear pack, edge folding,
shearing and parts collection.
2) the hydraulic system is automatic controlled and stable running.
3) human interface computer dialogue display, reasonable structure and easy in operation, labor saving (1~2 labors).
4) perform the process of forming, shearing and edge folding within one time when you input all operation
parameters on computer unit.
2. Parts of bw1600 corrugated transformer fin manufacturing machinemanufacturing machines
1) hydraulic automatic decoiler machine
2) transformer corrugated panels forming machine
3) hydraulic corrugated panels shearing and hemming machine
4) transformer corrugated panels automatic welding machine
5) hydraulic station
6) plc control system
3. Features of bw1600 corrugated transformer fin manufacturing machine
1) specially designed for forming and welding corrugated panels.
2) plc control, fully automatic line: automated conveying, clamping and welding.
3) touch screen control it is easy and convenient to operate.
4) high-speed welding, much faster than manual welding.
5) argon arc welding, the welding is close and the surface is very clean and smooth.
4. Parameters of fbw1600 corrugated transformer fin manufacturing machine
1) plate width: 300mm-1600mm
2) plate thickness: 0.5mm-1.75mm
3) corrugation height: 50mm-400mm
4) forming speed: 3-4finsmin
5) corrugation pitch: >=45mm
pictures of transformer corrugated tank folding machine manufacturer
