C Bracing Light Keel Roll Forming Machine

C bracing Light keel roll forming machine
C bracing Light keel roll forming machine is normal ceiling and drywall channel forming line. C bracing Light keel roll forming machine is with the : uncoiler, feeding and beveling and roll forming and cutting . The first designing solution is by one mold of changing the gap on the shaft with one cutting system. This designing is with the advantage of save the space, and save the machine cost. The second designing of the solution is by two molds on one shaft and with two sets of molds, one C mold and one U mold. This design can save the time of changing the mold. The third designing mold is one machine table with two separate C machine and U machine, so that the C profile machine and the U profile machine can run at the same time together, also each of the both can run separately. This C U machine design can save much workshop space, can have much high capacity.

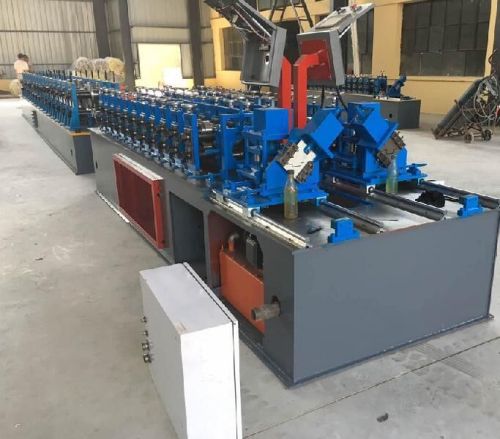

Please refer to below machine design picture:
Here are the machine specifications of the one kind of the combined pictures below:
1.Processing flow diagram of machine
Manual decoiler→ → Feeding material into machine →Roll forming machine →Punching→
Measure length →Hydraulic cutting →Finished
Products
2. Technical parameters
configurations
manual decoiler guiding platform
