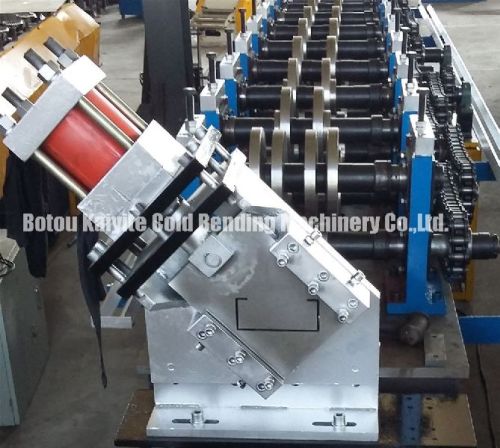

C Clip Purline Roll Forming Machine

C Clip  Purline Roll Forming Machine Quality is the key part for the c clip purlin roll forming machine , we even are serious to the spare part , we know that the encoder is a very important part of the cutting to length system, so we only adopt the best quality from OMRON Japen. And we offer enough matching couplings to make the machine will never shut off due to the encoder problem . Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand A. full automatic B . lower cost  C. high efficiency D. reliable working  E. low energy consumption Technical parameters: Material thickness: 1.5 - 3 mm Size of purlin : 80-300mm Power: Voltage : 380V3PH50HZ Main Motor : 7.5 KW Hydraulic Motor : 5.5 KW Hydraulic Pressure : 10-12MPa Main machine Flattening rollers : 7 rollers Main forming station : 13 steps Forming Shaft : diameter 85 mm, 45# steel thermal refining Roller Material : GCR15 bearing steel quenching HRC58-60° Main machine body : 350# H steel welded Transmission : Chain and Sprocket, chain size 2 inch Wall plate : 20 mm thickness Blade material : Cr12 mould steel with quenched treatment60-62° Punch Mould (if needed) : Cr12 quenched Forming Speed : 7-10mmin for standard solution Hydraulic cutting system : fully automatic .  Material of blades: Cr12, quenching treatment. Forming rollers Specification: 45# steel, CNC Lathes, heat treated 45# steel
