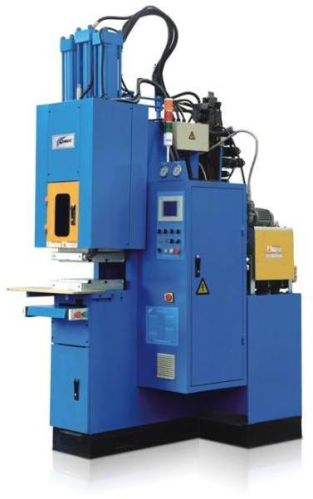

C Frame Rubber Injection Molding Machine

₹ 18.10 Lakh / 30000 30000 Set

MOQ1 Set(s)
Clamping Force300KN
space of platens350mm
min. mold thickness60mm
heating power8kw
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Clamping Force300KN
injection volume160cc
machine reference weight2t
platen size300*300mm
max. clamping stroke300mm
min. mold thickness60mm
machine dimensionL1.8*W1*H2.7m
heating power8kw
total power20kw
space of platens350mm

We are offering rubber injection molding machine 1. Special for making seal profile junction and corner products
1. C frame type by two side plates total open structure.
2. Upper moving clamping style and aiao injection device without runner.
3. No need check-valve and more accurate dosing.
5. There is no extra vulcanized rubber in the process of production and no need inject rubber to clear vulcanized rubber in the nozzle part.
6. It saves more raw material and improves working efficiency.

Additional Information

Payment Terms L/CT/T
Port of DispatchShenzhen/Shanghai
Packaging Detailswe use standard seaworthy packing form to ensure complete equipment to customer without any damage or problem. Meanwhile, custom packing requirements are available.
Delivery Time2 days after receiving deposit
