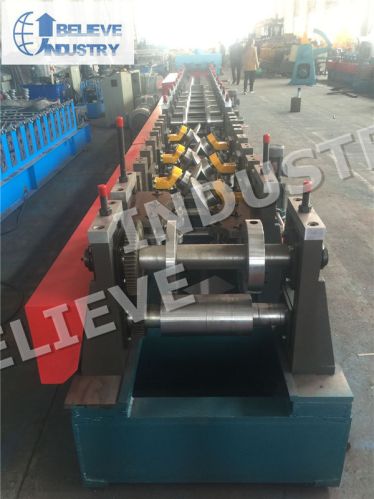

C/m Purlin Roll Forming Machine, Brand Name : Believe Industry

₹ 45.50 Lakh / Set

MOQ1 Set(s)
Brand NameBelieve Industry
Production Capacity60 sets per quarter
Number Of FlowerC Purlin
Total Carbohydrate2 years for all the parts of the machine
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerC Purlin
Brand NameBelieve Industry
Production Capacity60 sets per quarter
Total Carbohydrate2 years for all the parts of the machine
After-Sales Service ProvidedCommission and Installation: Free
Country of OriginJIANG SU
Model NumberC 100-350

We are offering purlin roll forming machine.
Description:
this cm purlin roll forming machine is used to produce c-shape and m-shape steel purlins. Main components of this machine are decoiler, guiding and leveling device, pre-punching device, roll former, hydraulic cutting device, collecting table, hydraulic station, etc.
technical parameters - cm purlin roll forming machine
raw material carbon steel, galvanized steel, q235
material thickness 1.5-3.0mm
material width depend on specific profile
diameter of shaft 76mm
material of shaft 45# steel
material of rolls
gcr15 over quenching hrc 58-62°
main power 22kw
forming speed 15-20mmin
forming station 16 stations
cutting type hydraulic cutting
cutting blade
cr12 mov
