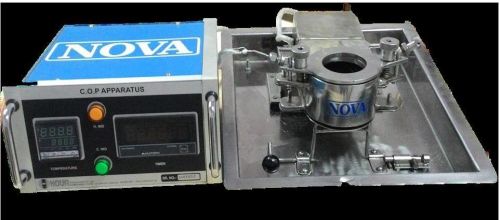

(Castor Oil Penetration) APPARATUS (As Per IS 2046:1995) is specifically designed for Castor Oil Penetration of Crape paper for Decorative Laboratory Testing application.
CONSTRUCTION
The system is consisting of 2 Parts.
(1) CASTOR OIL CONTAINER ASSEMBLY.
(2) DIGITAL CONTROL PANEL.
TECHNICAL SPECIFICATION OF CASTOR OIL CONTAINER ASSEMBLY
The Castor Oil Container Assembly is made of STAINLESS STEEL having ��..
-Spring Holding Sample System.
- Manual Stirrer Built-in. P. T
- Pt-100 sensor.
- Micro-switch.
- Heater with insulation.
- Container inclined mechanical device &
- Water cooling circulating Coil built-in.
The entire container assembly is kept in Stainless Steel Tray.
TECHNICAL SPECIFICATION OF DIGITAL CONTROL PANEL
The Control Panel is consisting of following.
- Mains Switch.
- Mains Indicator.
- Digital PID Controller.
- Heater ON Indicator.
- Alarm Indicator i. e. for Water circulation through cooling coil, if required.
- Digital Micro time Totalizer having Resolution is 0.001 Sec.
- On the back side of the panel, Johnson connector is provided.
- Socket for Pt-100 Sensor.
- Mains Cable.
- SSR & Fuse is built-in the panel.
TECHNICAL DATA
- Digital Timer Range : 999.99 Sec.
- Resolution : 0.01 Sec.
- Temperature Control : Digital PID
- Sensor : Pt-100
- Temperature Range : 37�° C + 1�° C
- Temperature Resolution : 0.1�° C
- Cooling : By Circulating cold water
