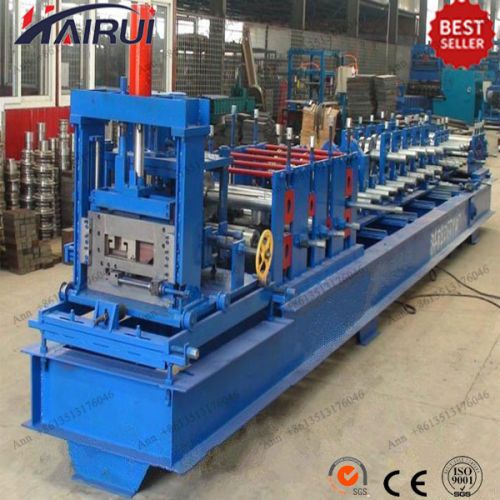

C Purlin Roll Forming Machine

₹ 11.77 Lakh / Set

MOQ1 Set(s)
Raw materialGalvanized Steel(GI),or Prepainted Galvanised Steel(PPGI)
Leveling Station7 rows
Shaft materialHigh grade NO 45 carbon forge steel
Side wall thcikness16mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Roll Station11-13 rows
Raw materialGalvanized Steel(GI),or Prepainted Galvanised Steel(PPGI)
Leveling Station7 rows
Shaft diameter80mm,precision machined
Roller material45# steel,Heat Treatment,hard Chrome Coated with thickness 0.05mm
Side wall thcikness16mm
Shaft materialHigh grade NO 45 carbon forge steel
Feeding thickness1.5-3mm
Cutter StandardCr12, Heat treatment
Control systemPLC(imported Brand)

A) What is the working flowing?
Decoiler --- Feeding & Leveling Device --- Punching --- Cutting --- Main Forming ---Run out table
B) What is the Technical Data?
Leveling rollers 7 rollers
Thickness of Material Max 3mm
Roll Diameter 80mm
Forming Roller stand 11
Main Axis material First grade 45# steel, heated and quenched, model 212
Roller material GCr15 Steel, Quenched and heated process, and surface ofroller coated with 0.05mm Chrome the depth of quenching is 3mm
Forming Speed 0-15 mmin
Transporting Type 1.5" Chain of transmission
Main Machine Power 18.5 Kw
Electrical control system PLC Frequency Control system
Weight of machine about 5.5 Ton
Cutting type Hydraulic cutting
Hydraulic pressure about 20 Mpa
Hydraulic Blade and cutter material C r12 Mov, quenching process
Cutting length tolerance +- 2mm
C)What is the Components of line?
Name Quanlity Description
De-coiler 1 set MAX bearing: 5.0T
Levelling device 1 set Material:GCr15
Roll forming part 1 set GCr15(GCr12 available)
Straighting device 1 set GCr1545# steel
Hydraulic mold cutting 1 set
Cutting material: Cr12Cr12MoVCr12
(total three blades are equiped with these cutting sets)
Product discharge rack 1 set 6m
