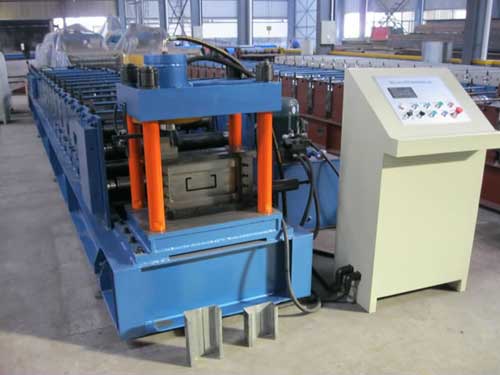

C Purlin Roll Forming Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The c purlin roll forming machine manufactured by our company is used as the supporter of roofs and walls in large-scale and mid-scale construction, such as factories, warehouses, garages, exhibition centers, cinemas, theatres, gardens, and so on. The product of our c purlin roll forming machine is used as the supporter of roofs and walls. our c purlin roll forming machine consists of decoilerleveling devicepunching systemroll forming systempost-cutting equipmenthydraulic stationelectric controlling system and run out table for product

View More Details

Send Enquiry

Product Details

Specifications

Suitable material	Cold-rolled steel strip and heat-treated galvanized steel strip
Thickness of raw material	1.5-3.0mm (235-345Mpa)
Size of C purlin	100-240mm adjustable (special size available)
Material of roller	Cr12 mold steel being quenched treatment, HRC58-60
Material of cutter blade and punching die	Cr12 mold steel with quenched treatment, HRC58-60
Material of shaft	High quality 45# steel with heat treatment Roller grinder milling
Forming speed	About 10-12m/min
Power requirement	Main motor power : 15 Kw (Depend on final design) Hydraulic station power : 5.5Kw (Depend on final design)
Diameter of shaft for rollers	82mm
Controlling system	Mitsubishi PLC & converter
Quantity of rollers	About 15 stations for main rollers
Weight of machine	About 7500KGS
Size of machine installation	About 15mX2.1mx1.4m
