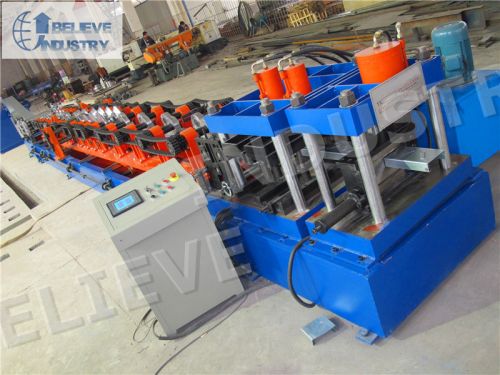

C Purlin Roll Forming Machine

We offert c purlin roll forming machine.
Description:
this forming machine can be used for processing 1.5~3.0mm cz purline. It is composed of decoiler, leveler, punching cut off machine, molding machine, hydraulic pressure station, material-collecting platform, controller, etc. During the process, the interchange of c and z purline is convenient. The installation of this cz purlin interchangeable forming machine is simple. Adopting plc control system, this vehicle has the advantages of fast operation, low cost, high precision molding products, and the accuracy of cut off length.
properties:
1. This cz purlin interchangeable forming machine adopts reasonable steel structure. It has the traits of large loading ability, stability and reliability;
2. The forming roller is designed by professional technical personnel. After heat treatment, the roller with high forming accuracy and long service life is coated by chrome plated.
3. The other parts of cz purlin interchangeable forming machine are all from the well-known brands. It can ensure the performance and quality of machine;
4. The operator can work without special training;
5. It can work with low noise and high efficiency.
parameters:
1) applicable materials: cold-rolled, hot rolled steel coils, galvanized roll, general carbon steel, etc;
2) applicable thickness: 1.5~3 mm, or as your requirements;
3) forming specification: according to the demand of customer;
4) molding speed: 8~12 mmin;
5) main motor power: about 15 kw;
6) hydraulic cut off without waste;
7) hydraulic pressure station power: 7.5 kw;
8) control system: mitsubishipanasonic plc, yaskawapanasonic inverter, omron encoder, etc;
9) optional accessories: hydraulic uncoiler.
