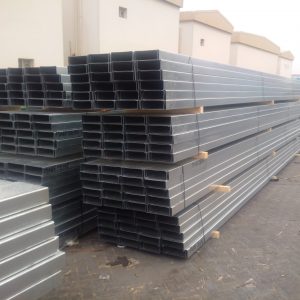

C Purlins

DANA  purlin materials are with a light weight in order to confer to an effective and faster construction work. The C purlins are worth mentioning in this regard as they provide the best resistivity against rust and can be degraded with much ease. The C purlins are used for the framing of exterior portions of the wall. It is their alluring look for which they are being used as wall posts on large scale.

With our capacity to deliver huge quantities of purlins and cold-roll formed sections with very short lead times, DANA Steel  is a leading supplier to construction projects in UAE ,neighboring gulf countries (Qatar,Oman,Bahrain,Saudi Arabia,Jordan,Kuwait) and African sub-continent. Our Purlins and cold-roll formed sections find application in a wide range of steel constructions, ranging from simple storage sheds to complex turbo-generator buildings in power plants.

• Power
• Cement
• Airport
• Steel
• Metallurgical
• Automobile
• Textile Sectors

Lengths: purlins and girts are supplied cut to required lengths up to 12m. Lengths exceeding this can be supplied but are subjected to suitable transport and site handling arrangements

Fastening: Fastening of purlins and girts to cleats in normally by either M12 or M16 class 4.6 bolts.

Ordering Notation :-

202c15 ( 202mm depth and 1.5mm thikness)

The first three digits of section reference indicate the depth of the section in millimeters (ie: 202 equals 202mm depth). The fourth digit is a letter that signifies the profile type(i.e: Z for Z profile & C for C profile). The last two digits indicate the material thickness ( i.e: 25 equals 2.5mm).

• Specification :-
• ASTM A653 Grade 50/80 G90 (New ASTM Standard, Min Yield Strength 340Mpa for Grade 50,and 550 Mpa for Grade 80)
• ASTM A446 Grade ‘D’ G90 (Old ASTM Standard, Min Yield Strength 340Mpa)
• EN 10147 S350GD Z275 MAC
