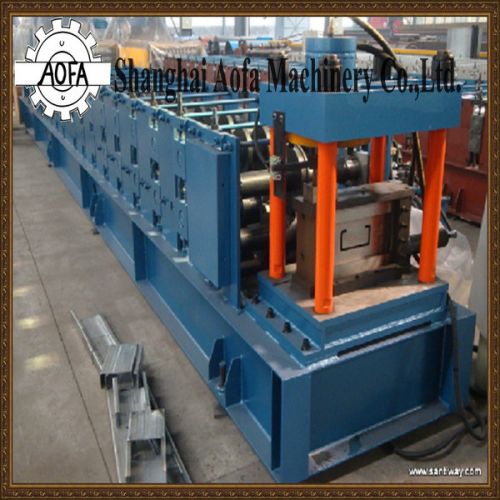

C Stud Roll Forming Machine

We are offering C purlin roll forming machine.
automatic c purlin roll forming machine
Other machine we manufacture
old roll forming mahcine, color steel roll forming machine,roof and wall panel machine,decking floor roll forming machine,floor decing forming mahcine, stud and track roll forming machine, Z and C purlin machine, highway guardrail roll forming machine,cable tray machine, and so on.
TechnicaL description:
1. Decoiler
(1)Max. Width: 500 mm
(2)Inner Diameter: Φ350 – Φ500 mm
(3)Out Diameter: 1500 mm
(4)Max. Loading Capacity: 5000 kgs
2.Leveleing device
(1)Max. Width: 600 mm
(2)Thickness: 1-3 mm
(3)Rollers for Leveling: 5 rollers
(4)Material for Rollers: GCr15 steel
(5)Hardness for Heat Treatment: HRC55 – 60°C
3.Roll forming device
(1)Rolled Material: Cold Rolled Steel Sheet
(2)Material Thickness: 1-3 mm
(3)Rollers: 13Groups
(4)Material for Rollers: GCr15 steel
(5)Material for shaft: GCr15 steel
(6) Hardness for Heat Treatment: HRC55 – 60°C
(7)Diameter of shaft: 80mm
(8)Frame panel thickness: 20mm
(9)Bottom frame: 36# H-section steel
(10)Motor Power: 15 kw
(11)Speed Reducer Model: QZ 400
(12)Rolling Speed: 2 – 8 m / min; Adjustable
(13)Driven type: 2"Chain
4. Punching devce
(1)Adopted with 4 pillars hydraulic punches.
(2)Length for Punch Table: 1.2m*1.5 m
(3)Motor for Hydraulic Punch: 7.5 kw
(4)Hole-Punching Modular: 3 Pics
5.Cutting device
(1)Material for Cut-Off Modular:Cr12 steel
(2)Hardness for Heat Treatment:HRC55-60°C
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off
(4)Cut-Off Modular:1 set
(5)Motor for Hydraulic Stand: 5.5 kw
6. Control system:
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Japan Panasonic
(3) Encoder Brand: Omron
(4)Length Error:±2mm
(5) Transducer: Panasonic.
