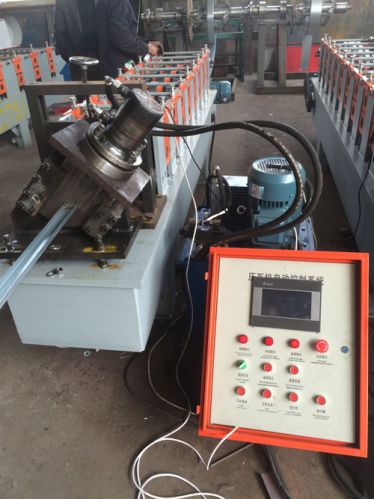

C U Steel Profile Roll Forming Machine

We are forming c u steel profile roll forming machine.
The component parts of steel profile roll forming machine:
5t manual decoiler 1 set
main forming machine 1 set
plc control system 1set
oil pump 1 set
tracking punching and cutting device 1 set
run-out table 1set
producing process:
decoiler - feeding-forming -caculate length --automatic cutting --product
detailed specification:
1.manual inner tight decoiler with brake
a.coil inner diameter 450mm-550mm
b. Maximum width of coiling600mm
c. Maximum weight of loading 2500kg
2. Main forming machine
a. Number of forming steps 10rows
b. Material of shaft 45# steel . Outer diameter 50mm
c.main motor power: 4kw
d. the speed of forming: 0-60mminute
3.hydraulic cutter
a. Material of blade:cr12 mould steel with quenched treatment 60-62
b. Cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(tracking cutting)
4.the electrical control system
a. The brand of display: delta
b.the main computer (plc): delta dvp14
5.hydraulic system
a. Adopting advanced hydraulic system of tai wan
b. Power:3kw
6.the equipments coating , package
a.the coating adopt international general shade-guide
b.the package :simple waterproof package.
7.the spare parts of the equipment .
a.the element of easy damaging :contactor conk: 2 unit ,fuse: 4 set
b.the hydraulic sealing up cushion: 1set
c.bolt spanner:1 set
we can also design and manufacture as per your request!
