C Z Quickly Interchange Roll Forming Machine

C Z Quickly Interchange Roll Forming Machine
C Z Quickly Interchange Roll Forming Machine there are three types of machine, c purlin machine, z purlin roll forming machine, C Z Section Steel Purlin Machine. The Web width can be 60-300mm Flange height can be 30-80, it is adjustable from min to max. The size of holes can be design by customers. This C Z Quickly Interchange Roll Forming Machine consists of uncoiler,feeding and straightening,punching and cutting part, main roll forming part,cutting device and runout table.

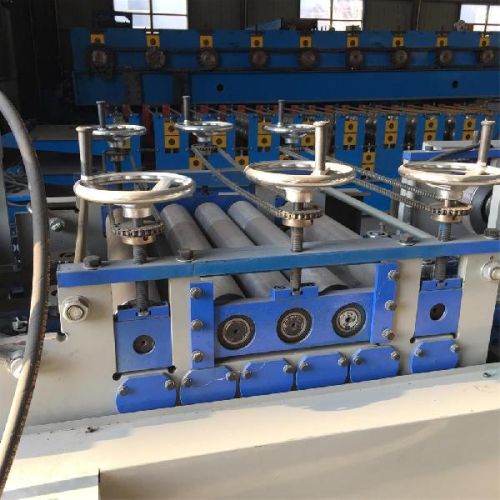

C Z Quickly Interchange Roll Forming Machine for c and z purlins
A).  Main Components:
1.  Decoiler -------------------------------------------- 1 Unit
2.  Feeding & Leveling -------------------------------- 1 Unit
3.  Hydraulic punching device ------------------------ 1 Unit
4.  Hydraulic cutting device --------------------------- 1 Unit
5.  Main roll forming machine ------------------------- 1 Unit
6.  Hydraulic Station ----------------------------------- 1 Unit
7.  PLC computer control ------------------------------ 1 Unit
8.  Output table ---------------------------------------- 1 Unit
B). Main Specification:
1.  Material: G.i Coil or Carbon steel
2.  Material Thickness:1.0-3.0mm
3.  Landscape orientation adjustment range of Hole distance : 45-500mm
4.  Length of purlin: >3m
5.  Forming Stations: about 16 Main rollers
