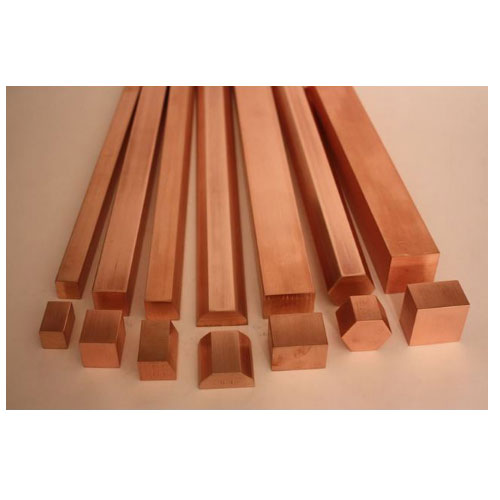

Polished C15000 Zirconium Copper, For Industrial

₹ 1,400 - ₹ 1,800 / Kilogram

MOQ100 Kilogram
MaterialCopper
FinishingPolished
GradeChromium Copper
ShapeRound
Supply TypeManufacturer, Supplier, Trader
Preferred Buyer Location Anywhere in India

Company Information

Member Since 3 Years
Nature of Business Manufacturer
GST No. 27BDXPJ5563L1ZN

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

MaterialCopper
FinishingPolished
ShapeRound
ApplicationIndustrial
GradeChromium Copper
Number Of FlowerChromium Zirconium Copper
Country of OriginIndia

The C15000 Zirconium Copper is the alloy with high softening temperature, which makes it good welding material. The addition of zirconium increases the strength of alloy and raises its softening temperature. The increased strength and softening temperature makes the alloy suitable for adapters, power semi conductor bases, spot welding electrodes and connectors.
Applications:

CONSUMER : Pencil-type & Light Soldering Guns: Tips, Rod Extensions
ELECTRICAL : Switches, Commutators, Resistance Welding Electrodes, Circuit Breaker Switches, Stud Bases for Power Transmitters & Rectifiers
INDUSTRIAL : Resistance Welding Tips, Welding Wheels, Connectors, Solderless Wrapped

Fabrication:

Joining Technique	Suitability
Brazing	Good
Butt Weld	Good
Capacity for Being Cold Worked	Excellent
Capacity for Being Hot Formed	Excellent
Coated Metal Arc Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Machinability	20
Oxyacetylene Welding	Not Recommended
Seam Weld	Not Recommended
Soldering	Excellent
Spot Weld	Not Recommended

Physical Properties:

Product Property	US Customary	Metric
Coefficient of Thermal Expansion	9.4 · 10 6? per °F (68-212 F)	16.9 · 10 6? per °C (20-100 C)
Coefficient of Thermal Expansion	9.8 · 10 6? per °F (68-572 F)	17.6 · 10 6? per °C (20-300 C)
Density	0.321 lb/in3 @ 68 F	8.89 gm/cm3 @ 20 C
Electrical Conductivity	93 %IACS @ 68 F	0.544 MegaSiemens/cm @ 20 C
Electrical Resistivity	11.2 ohms-cmil/ft @ 68 F	1.86 microhm-cm @ 20 C
Melting Point Liquid US	1976 F	1080 C
Melting Point Solid US	1796 F	980 C
Modulas of Elasticity in Tension	18700 ksi	129000 MPa
Specific Gravity	8.89	8.89
Specific Heat Capacity	0.092 Btu/lb/°F @ 68 F	393.5 J/kg · °K @ 293 K
Thermal Conductivity	212.0 Btu · ft/(hr · ft2 ·°F) @ 68 F	366.9 W/m · °K @ 20 C

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification
