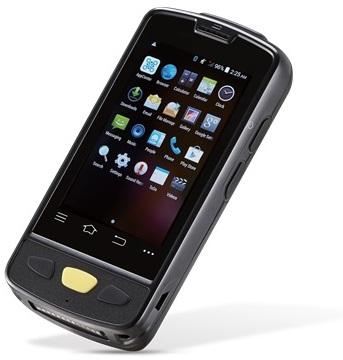

Chainway c4000 is a series of android powered smart terminals, with data capture, data processing, wireless communication pda. Meeting industrial standards, designed to support various mobile solutions. With the build-in high performance cortex-a7 1.3ghz dual core processor technology. C4000 meets industrial level ip64 (iec sealing), is sufficient to routine applications like railway inspection, road parking toll, vehicle inspection, logistics express, power inspection, warehousing management, chain retail, etc. Whether the mobile operators are working indoor or outdoor, with c4000, your business is always connected and highly efficient on-line.
Physical characteristics
*dimension
153 × 75 × 29mm 6.02 × 2.95 × 1.14in. weight 286g 10.08oz. (includes main battery)
display
performance characteristics
ram - 1gb ram
programming environment
operating system - android 4.4.2
user environment
operating temp. -10 to 50℃ 14 to
122℉ storage temp. -40 to 70℃ -40 to 158℉
humiditity - 5% - 95%rh (non-condensing)
communication
wlan - wi-fi ieee802.11bgn
wwan&voice - wcdmahsdpahspa+ (8501900mhz
2100mhz)
wpan - bluetooth specification v2.1+edr
gps - gps (embedded a-gps)
barcode scanner
1d linear scanner (optional)
1d laserccd symbol se955 se655
symbologies all major 1d barcodes
2d imager scanner (optional)
2d cmos laser scanner symbol se4500
rfid reader
*lf (optional)
frequency - 125khz, 134khz (fdx-b hdx)
protocol - iso117845
*hf (optional)
frequency - 13.56mhz
protocol - iso14443ab, iso15693
*uhf (optional)
