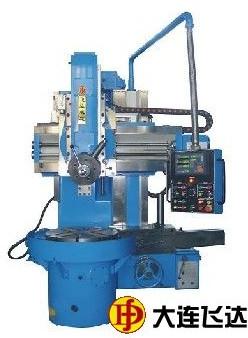

C5110 Single Column Vertical Lathe

We are offering c5110 single column vertical lathe.
Main use
it has a railhead and a sidehead,it's suitable of the ferrous,nonferrous metal and some kinds of non-metal materials with hard alloy,high capability and high speed steel tools.it can perform finely and roughly turning cylinder and inner hole,inner and outer taper,grooving ,drilling,tapping and reaming.
technical specification of c5110/cx5110
max.turning diameter(mm) 900
table diameter(mm) 1000
max.weight of workpiece (t) 2
speed range of table (r/min) 8--250
speed-step of table 16
power of main motor(kw) 15/22
max.working height of workpiece (mm) 800
travel of railhead horizontal(mm) 670
travel of railhead vertical (mm), turret 600 ram 700
feed range of railhead (mm/min) 0.8--86 12steps
max.travel of crossbeam(mm) 580
weight of machine (about t) 8
overall(l*w*h)(mm) 2400*2100*2760(mm)
