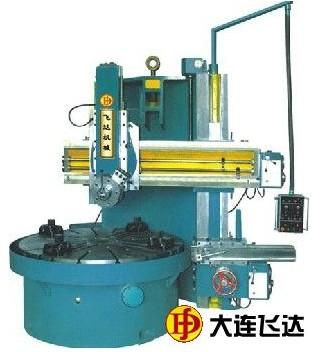

C5120 Single Column Vertical Lathe Machine

We manufacture C5120 Single Column Vertical Lathe Machine. This series machine is single column vertical lathe, it has a railhead and a side head, it's suitable of the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capability and high speed steel tools. It can perform finely and roughly turning cylinder and inner hole, inner and outer taper, grooving, drilling, tapping and reaming.
technical specification of c5120/cx5120
max.turning diameter(mm) 2000
table diameter(mm) 1800
max.weight of workpiece (t) 8
speed range of table (r/min) 4--125
speed-step of table 16
power of main motor(kw) 30
max.working height of workpiece (mm) 1200/1400
max.cutting resistance of railhead(kn) 25
max.cutting resistance of sidehead(kn) 20
max.torque of table(kn) 32
sectional size of tool bar(mm) 30x40
travel of railhead horizontal(mm) 1050
travel of railhead vertical (mm)turret 800 ram 1000
travel of sidehead horizontal (mm) 1050
travel of sidehead vertical(mm) 1150
moving degrees limit of railhead + 30°
weight of machine (about t) 15
overall(l*w*h)(mm) 3100x2800x3010(3210)
