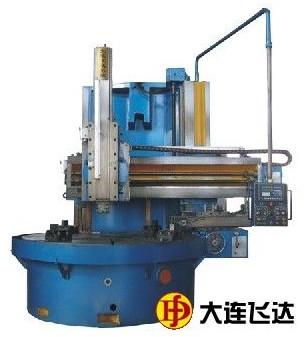

C5123 Single Column Vertical Lathe Machine

We manufacture C5123 Single Column Vertical Lathe Machine. This series machine is single column vertical lathe, it has a railhead and a sidehead, it's suitable of the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capability and high speed steel tools. It can perform finely and roughly turning cylinder and inner hole, inner and outer taper, grooving, drilling, tapping and reaming.
technical specification of c5123/cx5123:
max.turning diameter(mm) 2300
table diameter(mm) 2000
max.weight of workpiece (t) 8
speed range of table (r/min) 2.5--80
speed-step of table 16
power of main motor(kw) 30
max.working height of workpiece (mm) (1)working height of standard model:1350mm
(2)working height of increasing 250mm:1600mm
(3)working height of increasing 450mm:1800mm
travel of railhead horizontal(mm) 1150
travel of railhead vertical (mm) turret 800 ram 1000
travel of sidehead horizontal (mm) 630
travel of sidehead vetical(mm) 1150
moving degrees limit of railhead 0.8--86 12steps
weight of machine (about t) 18
overall(l*w*h)(mm) (1)standard model 3210x2850x3300
(2)increasing 250mm 3210*2850*3500
(3)increasing 450mm 3210*2850*3700
