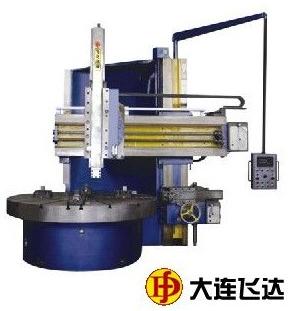

C5132 Single Column Vertical Lathe Machine

We manufacture C5132 Single Column Vertical Lathe Machine. This series machine is single column vertical lathe, it has a railhead and a sidehead, it's suitable of the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capability and high speed steel tools. It can perform finely and roughly turning cylinder and inner hole, inner and outer taper, grooving, drilling, tapping and reaming.
technical specification of c5132/cx5132:
max.turning diameter(mm) 3200
table diameter(mm) 2830
max.weight of workpiece (t) 10/30
speed range of table (r/min) 2--63
speed-step of table two gears stepless
power of main motor(kw) dc 55/75
max.working height of workpiece (mm) (1)working height of standard model:1600mm
(2)working height of increasing 200mm:1800mm
travel of railhead horizontal(mm) 2150
travel of railhead vertical (mm) 1000
max.travel of crossbeam(mm) 1300/1500
feed range of tool post (12steps) 0.8--86 level 12
power of feed motor(kw) 1.3/1.8
weight of machine (about t) 30
overall(l*w*h)(mm) (1)standard model 4950x4100x3800
(2)increasing 200mm 5100*4400*4000
