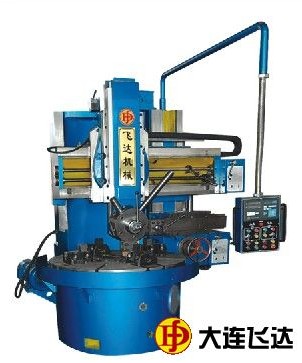

C518 Single Column Vertical Lathe

We are offering c518 single column vertical lathe.
Main use
it is suitable of turning surface,cylinder,inner and outer taper,inner bore of many kinds of small and medium-sized ring units,shells and flange plates,drilling,reaming and boring.
technical specification of c518/cx518
table diameter (mm) 720
max.turning diameter (mm) 800
max.working height of workpiece(mm) 800
max.weight of workpiece (t) 1.2
max.cutting resistance (kn) 20
max.torque(kn.m) 10
travel of railhead horizontal (mm) 570
travel of railhead vertical (mm) turret 600,ram 700
rapid traveling speed of tool post (mm) 1800
max.travel of crossbeam(mm) 420
moving degrees limit of tool post(m/min) +30°
speed range of table (r/min) 16(steps) 10～315
feed range of railhead (mm/min) 0.8～86 12steps
sectional size of tool bar(w*h)mm) 30*40
weight of machine (about t) 6.5
power of main motor (kw) 15/22
power of feed motor (kw) 1.3/1.8
overall dimensions (l*w*h)(mm) 2400*2100*2760
