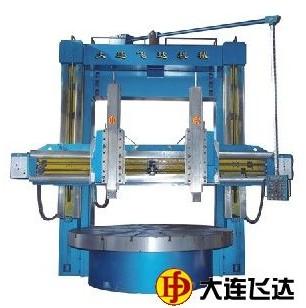

C5232 Double Column Vertical Lathe Machine

We offer C5232 Double Column Vertical Lathe Machine. This series double column vertical lathe is suitable for motor, water turbine generator, aviation, mining machinery, metallurgy and common machinery industries machining cylindrical turning and boring, surfing, inner and outer tapering and grooving roughly and finely.
technical specification of c5232/cx5232:
max.turning diameter(mm) 3200
table diameter(mm) 2830
max.weight of workpiece (t) 10/30
speed range of table (r/min) 2--63
speed-step of table level 16
power of main motor(kw) 55
max.working height of workpiece (mm) (1)working height of standard model:2000mm
(2)working height of increasing 500mm:2500mm
travel of railhead horizontal(mm) 1735
travel of railhead vertical (mm) 1000/1300
max.travel of crossbeam 1750/2250
weight of machine (about t) 36~45
overall(l*w*h)(mm) (1)standard model 7160x4400x5080
(2)increasing 500mm 7160x4400x5600
