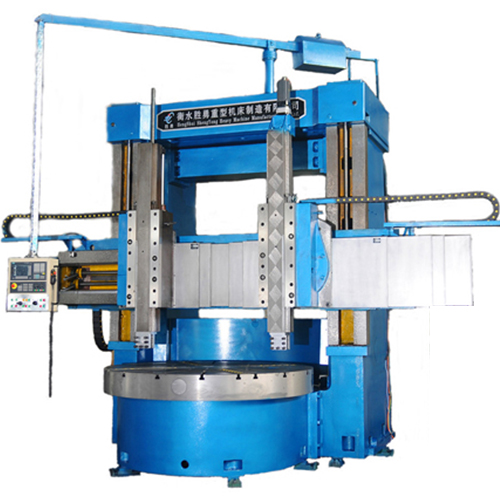

C5250 Double Column Manual Vertical Lathe Machine

Double column Vertical Lathe machine is particularly suitable for processing motor cover, wheels, brake hub, and other minor categories, pump, disc-type parts in a variety of species, small batch. Vertical lathe can be used in automobile equipments, construction machinery, electrical and other industries parts machining.
1 Easy to clamping workpiece,suitable for good precision machining disk type parts of complex shape.
2 Table and table base adopts whole casting thermal symmetric structure, guide rail is made of wear-resistant heat-resistant alloy, in order to ensure the machine with high precision and enough stiffness, strength and thermal stability.
3 Column adopts closed gantry framework structure, calculated by finite element analysis.
Double column Vertical turning lathe VTL machine model:
C5225C5232C5240C5250C5263
Maximum turning diameter:25003150400050006300mm
Table diameter : 25003150400050006300 mm
Technical specification of Double column vertical lathe machine C5250
1 Maximum turning diameter 5000 mm
2 Maximum Height of workpiece 2000250030003150 36504150mm
3 Maximum Weight of workpiece 325080 t
4 Table diameter 3600 4200 4500 mm
5 Speed range of table 1.3~42rmin
6 Maximum torque 63 KNmin
7 Vertical Travel of tool post 1250 mm
8 Horizontal travel of tool post -20~2630 mm
9 Rotation angle of tool post ±30°
10 Power of main
