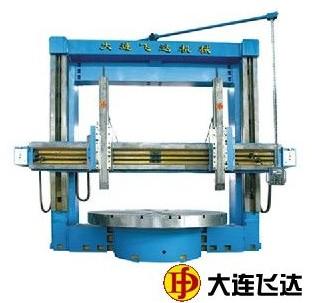

C5250 Double Column Vertical Lathe

We are offering c5250 double column vertical lathe.
This double column vertical lathe machine is suitable of finely and roughly turning cylinder and inner hole, inner and outer taper, surfacing,grooving of the ferrous,nonferrous metal and some kinds of non-metal materials with hard alloy,ceramic,high capabillity and high speed steel tools.
technical specifiaction of c5250/cx5250:
max.turning diameter(mm) 5000
max.working height(mm) 2000/2500/3000/3150/3500/4000
max.weight of workpiece(t) 30/50
table diameter (mm) 3600/4500
speed range of table (r/min) 1.3--42/0.2--40 two gears stepless
max.torque of table (kn.m) 63/100
travel of tool post vertical(mm) 1000/1300/1600
travel of tool post horizontal(mm) -20~2630
rotation angle of tool post (degree) +30/-15~+30
travel of beam(mm) 1650/2150/2650/2800/3150/3650
power of main motor(kw) ac75/dc75
weight of machine (about t) 55~100
overall dimensions (l*w*h)(mm) 8610*6000*5600,8610*6000*6100,8610* 6000* 6600
10930* 6000* 6800,10930* 6000* 7150,10930* 6000* 7650
