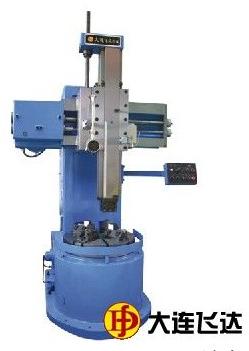

C578 Single Column Fixed Beam Vertical Lathe

We are offering c578 single column fixed beam vertical lathe.
It is suitable of turning surface,inner hole and excircle of many kinds of small and medium-sized ring units,shells and flange plates.
max.turning diameter(mm) 800
table diameter(mm)720
max.working height of workpiece(mm) 750
max.weight of workpiece(t) 1.2
max.cutting resistance(kn.m) 20
max.torque(kn.m) 10
travel of railhead horizontal(mm)420
travel of railhead vertical(mm) 600
speed range of table(r/min,8steps) 38/88,76/88,135/158,176/315
feed range of railhead(m/min) 5-80,stepless
rapid traveling speed of tool post(mm/min) 1800
sectional size of tool bar(w*h)(mm) 30*40
weight of machine(about t) 5
power of feed motor(kw) 2.2
power of main motor(kw) 11kw/1460r/min,14kw/2920r/min
overall dimensions(l*w*h) 1938*1742*2745.
